Why NEMA 14-50 Outlets Melt with EV Chargers (And How to Prevent It)

By Marcus Chen Published July 13, 2026 Read 8 min read Topic Level 2 Charging

Summarize with AI ChatGPT Claude Perplexity Gemini Grok

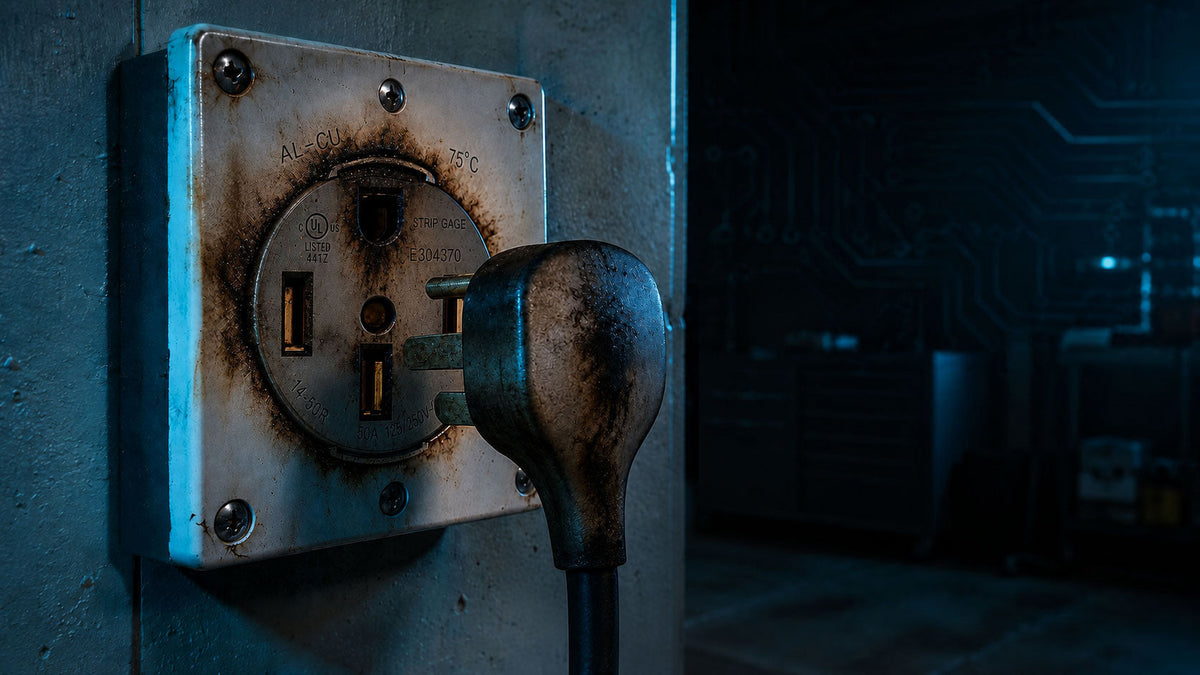

Melted NEMA 14-50 outlet with heavy EV charger showing thermal failure signs

TL;DR

NEMA 14-50 outlets melt from high resistance at the plug-receptacle interface — heat builds faster than it can dissipate. The two documented drivers are residential-grade receptacles under continuous 32–40A EV load and improper terminal torque at install. Cable-side weight on the plug is a design consideration that can concentrate contact stress if the plug is pulled out of alignment; its role in specific melting events isn’t established in regulator data. Fix: install a UL-listed industrial-grade receptacle (Hubbell HBL9450A or Bryant 9450FR, ~$60–90) and have a licensed electrician verify terminal torque against the device’s spec.

What NEMA 14-50 Actually Is (And Why EV Chargers Push It to the Limit)

A NEMA 14-50 is a 250-volt, 50-amp four-prong receptacle. Two hots, one neutral, one ground. It was designed for electric ranges and dryers — appliances that draw big current in short bursts.

EV charging is different. Under NEC 625.42, continuous loads (three hours or more) must be limited to 80% of the circuit rating. A 50-amp circuit gets you 40 amps continuous. Most portable Level 2 chargers pull the full 40.

The math works on paper. The failure happens in the receptacle body — where the physical contacts, the wire terminals, and the plug meet.

The Two Failure Modes: Thermal vs Mechanical

Almost every discussion of NEMA 14-50 failure treats it as one problem: "outlet gets hot, outlet melts." That's two problems glued together, and they have different root causes.

Thermal Failure — Loose Terminals and Cheap Contacts

A residential-grade NEMA 14-50 uses steel contacts with back-stab connections. Back-stab means you push the wire into a spring-loaded terminal instead of tightening it under a screw. It's fast for the electrician. It also works loose over years of thermal cycling.

When the connection loosens, resistance goes up. Resistance under 40 amps continuous means heat. Heat softens the plastic around the terminal. The contact loses tension. Resistance goes up more. This is the runaway loop that ends with a discolored, buzzing outlet.

Industrial-grade receptacles solve this two ways:

Brass contacts instead of steel (brass has better conductivity and holds pressure)
Screw terminals with real torque spec (usually 35 in-lb) instead of back-stab

The best-known industrial parts: Hubbell HBL9450A, Bryant 9450FR, Leviton 279-S00. They cost $50–$70 versus $8 for a hardware-store residential unit. On a circuit that will run 4-8 hours a night for years, that price difference pays for itself the first time you check the receptacle body and it isn't warm.

Mechanical Failure — Plug Alignment and Weight Distribution

A plug that is poorly supported or pulled out of alignment may put mechanical stress on the receptacle. Keep the charging cable supported and the plug fully seated. Portable Level 2 chargers with control electronics mounted at the plug end place additional weight at the receptacle interface; how much of that weight actually loads the plug depends on how the cable is routed and supported.

Weight-on-plug is only a relevant loading scenario when the portable EVSE is used unmounted and its control electronics sit at or near the plug end. The Tesla Corded Mobile Connector (Gen 2, 40A) is one such design — 5.2 lb controller alone; ~11 lb full assembly with the 14-50 adapter and cable. Tesla and the TMC community both recommend a mounting bracket to unload the plug.

Wall-mounted EVSEs like the Emporia Pro Level 2 and ChargePoint Home Flex support their full station weight via the mounting bracket, so their published station weight does not load the plug even when the station is connected via a NEMA 14-50 pigtail.

Tesla Motors Club owners have posted post-mortems where a melted receptacle traced to plug misalignment. From one owner’s analysis: “the meltdown was due to increased resistance brought on by lateral force being applied to the plug, which loosened the contact force of the receptacle contacts, with the plug pulled about 1/8th inch out of the receptacle.” This is one owner’s diagnosis of one failure — not a general failure rate. Outlet condition and terminal torque still determine whether charging is safe in the first place.

WenStorm’s handle-integrated design removes the inline control box (electronics live inside the J1772/NACS connector at the vehicle end, not at the receptacle end). This is one design consideration; it does not substitute for a properly installed, industrial-grade receptacle with correct terminal torque.

The Industrial-Grade Receptacle That Actually Handles EV Duty

If you're specifying a new install, three receptacles are worth paying up for:

Hubbell HBL9450A — Brass contacts, screw terminals, 35 in-lb torque spec. Built for commercial dryer plugs and industrial welders. This is the one most professional EV installers now default to.

Bryant 9450FR — Similar internals, slightly cheaper. Same brass-and-screw design.

Leviton 279-S00 — Commercial-grade, screw terminals only, no back-stab option. About $45. The most common upgrade over a residential unit.

Skip anything sold as "Level 2 EV outlet" for under $20. That's a residential receptacle in different packaging.

The install detail that matters most: torque the neutral and ground terminals to spec, not by feel. A calibrated torque screwdriver is $60. Your electrician should own one. If they don't bring it to the job, you're paying for the outlet to loosen in two years.

What the Regulator Record Actually Shows

The most important thing to know: federal safety regulators have never recalled the NEMA 14-50 receptacle itself. When people cite "Tesla's adapter recall," they're usually thinking of NHTSA campaign 16E-091, which pulled 6,729 Tesla mobile connector adapters manufactured between August 2012 and December 2013. The recalled adapters were 14-30, 10-30, and 6-50. NEMA 14-50 was explicitly excluded.

What's more informative than the recall itself is Tesla's stated defect language. From the NHTSA filing: "The affected adapters may have insufficient welds within the cable which can result in increased electrical resistance. Increased electrical resistance may cause overheating or arcing, increasing the risk of a fire." (Source: NHTSA 16E-091 recall report.) The full chain is right there: extra resistance → heat → arcing → fire. Two customer reports were enough to trigger the recall.

Seven years later, that exact language reappeared in a much larger recall — this time not about adapters, but about the receptacle interface itself.

In December 2023, Porsche and Audi jointly recalled more than 134,000 vehicles (NHTSA campaigns 23V-841 and 23V-842) because their supplied portable Level 2 charging cables could overheat at the wall-outlet interface. Porsche's NHTSA filing states the defect precisely: "In certain instances, the charging cables can become hot during charging when plugged into certain types of lower quality electrical receptacles due to elevated electrical resistance at the receptacle interface. Increased resistance in the charging cable can increase the risk of overheating and thermal damage to the electrical receptacle and the surrounding area."

Porsche's remedy: replacement cables with a temperature sensor built into the NEMA plug.

Each of these recalls documents a real failure mode, but they are not the same failure mode. Tesla 16E-091 was about weld defects inside specific adapter units (14-30, 10-30, 6-50) — a manufacturing defect in the adapter that increased internal resistance. Porsche 23V-841 and Audi 23V-842 were about the mobile charging cable failing to detect an overheating receptacle — a sensing/protection defect that let outlet-side resistance rise to fire risk before the equipment intervened. Neither recall establishes charger weight or cable-side mass as the cause of the specific failures.

What they collectively show is that increased resistance at any point in the charging path — adapter internals, receptacle-plug interface, terminal connections — can cascade to overheating, thermal damage, and fire. The mechanism is well-documented; the specific accelerators for any one home installation are receptacle grade, install torque, contact condition, and how the cable is routed and supported.

What Owners Actually See (And Why the Diagnosis Usually Misses)

If you spend an hour reading r/electricvehicles, r/evcharging, and TMC threads about melted 14-50 outlets, a pattern jumps out. The failure descriptions are identical. The blame is almost never the same.

From a canonical 440-upvote r/electricvehicles thread: "Our $15 Leviton 14-50 from Home Depot melted after 4 years on our 40A line." OP's conclusion: use a commercial-grade outlet. No mention of the charger's weight.

From r/AskElectricians "Outlet Overheating" (Tesla charger, 40A breaker): "When I disconnected it sometimes, the handle was getting really hot… it was all melted." OP's conclusion: bad install. No mention of the charger's design.

From r/evcharging (Grizzl-E Classic): "NEMA 14-50 outlet melting and damaging the input plug." The owner had to retire the entire charger because the outlet melt cooked the plug on the EVSE. OP's conclusion: bad outlet. No mention of the brick hanging off it.

Across dozens of these threads, the mechanism is described accurately — melted plugs, loose receptacles, chargers throwing "loose connection" errors, handles that get too hot to touch. What owners consistently miss is that a heavy control box hanging on the plug is what starts the loosening in the first place. The outlet is the victim, not the perp.

This matters because if you follow the popular advice — hardwire, or upgrade to a Hubbell — but keep using a charger that puts its electronics on the plug, you've solved half the problem. The industrial receptacle will last longer. It won't last forever. Nothing designed to be a stationary anchor point can withstand years of nightly load-cycling with a five-to-twenty-pound brick pendulum-swinging off it.

Signs Your NEMA 14-50 Is About to Fail

You almost never get a sudden failure. You get warning signs and ignore them:

Discoloration around the plug or receptacle face — brown, tan, or yellow tint. That's polymer degradation from heat. It doesn't reverse.
Faint buzzing or humming when charging — a loose contact vibrating.
The plug body feels warm to the touch after 30 minutes of charging. Some temperature rise can occur during continuous charging, but do not rely on touch alone to determine safety. Stop charging if the plug or receptacle becomes unusually or increasingly warm, uncomfortable to touch, discolored, loose, noisy, or produces an odor. Follow any temperature warning or fault shown by the EVSE or vehicle.
A tripped breaker mid-charge, especially if it happens intermittently. Do not repeatedly reset. The breaker is a protective device, not an operating switch for repeated fault diagnosis. Also note: the breaker is not a temperature monitor for the receptacle. Loose or resistive connections at the plug or receptacle can overheat locally without drawing enough total current to trip the breaker. See our EV charger tripping the breaker guide for the identification-first diagnostic sequence.
Anything that smells like burning plastic, or you see smoke, active arcing, or fire — move away and call emergency services. Do not touch the connector, receptacle, or charging equipment. De-energize the circuit at the panel only if the panel is safely accessible and doing so does not require approaching the hazard.

If you see any of these, don't wait. Replace the receptacle with an industrial-grade unit, verify torque, and check the wire condition where it enters the terminal.

The cost of ignoring the signs isn't theoretical. One Tesla owner on TMC had his Mobile Connector melt into the car's charging port — the charging port and internal cable required a $3,000+ Tesla Service repair. Then it happened a second and third time with the replacement cable, even after the NEMA outlet had been swapped. What made the outlet worth replacing was cheap. What made the failure worth catching early was $3,000.

Safe Installation Checklist (Print This)

The values below are typical for a residential 50A EV charging install. Your electrician should verify each against your specific device, run length, ambient temperature, panel condition, and local code cycle before install.

Give this to your electrician if you're installing a NEMA 14-50 for EV charging:

Wire gauge: 6 AWG copper for runs under 100 feet at 50A. 4 AWG for longer runs or aluminum.
Breaker: 50A dedicated circuit. No shared loads.
80% rule: Charger set to 40A max continuous per NEC 625.42.
GFCI: Required per NEC 210.8(A)(11) unless the charger is hardwired. Use a Class A GFCI breaker rated for EV loads — cheaper GFCIs nuisance-trip on EV inductance.
Torque: All terminals torqued to receptacle spec (Hubbell HBL9450A is 35 in-lb on the phase terminals, 25 in-lb on ground).
Height: Install the receptacle 18-24 inches from the floor. Lower than that catches garage water. Higher increases the mechanical lever arm on the plug.
Location: Straight-line access from where the charger will actually sit — not around a corner, not behind a shelf.

If any of those get skipped, you're already the person from the Reddit thread six months from now.

Where WenStorm's Electronics Live: A Product Design Note

WenStorm's portable Level 2 charger integrates its control electronics — relay, control board, temperature sensors — inside the J1772 or NACS connector handle at the vehicle end. There is no midline control brick and no plug-mounted control box. The cable running out of the NEMA 14-50 receptacle is just cable.

When the connector is plugged into the car, the car's charging inlet supports the weight of the smart handle. The wall receptacle sees only the pull of the cable itself.

This is one design consideration for a plug-in portable EVSE. It does not, by itself, prevent outlet melting. Receptacle grade, terminal torque at install, contact condition, and how the cable is routed and supported still determine whether continuous EV charging is safe at your specific outlet.

Frequently Asked Questions

Can I use a residential NEMA 14-50 outlet for EV charging?

Technically yes, but residential-grade receptacles are consistently the weakest link when 14-50 outlets do fail under EV load. Residential units use back-stab terminals and steel contacts that can loosen under sustained 40A continuous draw. An industrial-grade receptacle (Hubbell HBL9450A, Bryant 9450FR, Leviton 279-S00) uses brass contacts and screw terminals, and is worth the $50 upgrade over the $8 residential part.

How much amperage does an EV charger need?

Most portable Level 2 chargers pull 32-40 amps continuous. NEC requires continuous loads be limited to 80% of the circuit rating, so a 50A circuit (like NEMA 14-50) supports 40A continuous, and a 40A circuit supports 32A continuous. Higher-amperage hardwired chargers exist (48A, 80A), but for portable Level 2 charging, 40A is the practical ceiling.

Why do EV charger outlets get hot?

Two reasons, usually combined. Thermal: loose or corroded terminal contacts create resistance, which turns 40 amps continuous into heat at the connection point. Mechanical: a heavy charger brick hanging on the plug shifts the internal contacts off-center, reducing contact area and concentrating heat where the plug now presses at an angle. Both are prevented by using an industrial-grade receptacle and a charger design that doesn't hang electronics on the wall — like WenStorm's, where the smart electronics live in the J1772/NACS connector and are supported by the car's inlet, not the outlet.

What's the difference between NEMA 14-50 and 6-50?

NEMA 14-50 is a four-prong outlet with two hots, neutral, and ground. NEMA 6-50 is three-prong with two hots and ground only — no neutral. For EV charging, both deliver the same 240V/40A continuous. NEMA 14-50 is more common because it's also the standard RV park outlet, so portable chargers ship with 14-50 plugs by default. Use 6-50 if your charger requires it or if you're specifically installing a welder-outlet-compatible circuit.

Do I need GFCI protection on my NEMA 14-50 EV circuit?

Yes, if the outlet is in a garage or outdoors, per NEC 210.8(A)(11). Use a Class A GFCI breaker at the panel — a GFCI receptacle is not rated for this load. Use a breaker specifically rated for EV loads (Siemens QF250A, Eaton BRN250, or similar); cheaper GFCIs nuisance-trip on the inductive load of EV chargers. Hardwired chargers exempt the outlet requirement but still require GFCI at the circuit level.

The NEMA 14-50 outlet is the workhorse of home EV charging. It fails when three things get skipped: the industrial receptacle, the torque check, and a charger that doesn't hang its own electronics on the plug. Fix all three and you'll never revisit this article.
